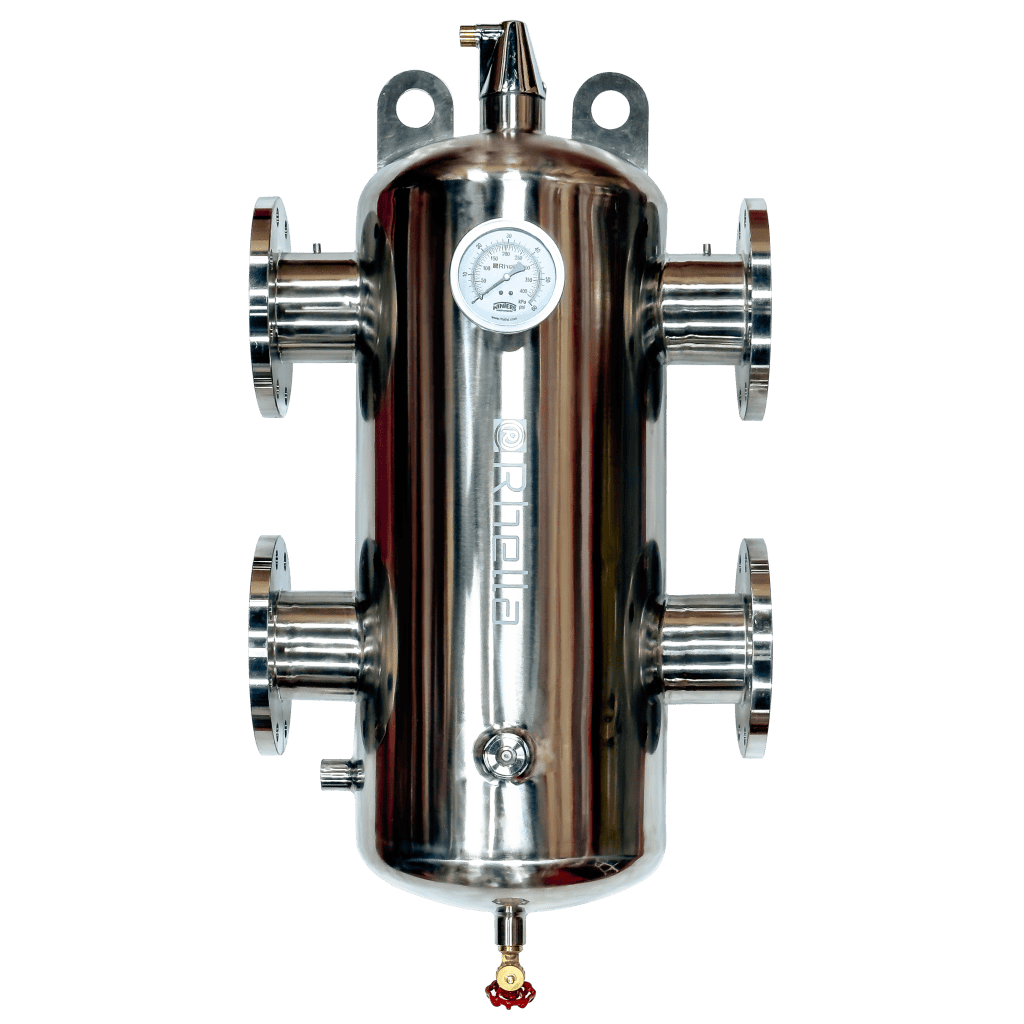

LLH600P Hydraulic Separator with Pall rings, a dirt magnet and 6″ ANSI Flange Connections
Product Number: LLH600P
Flow Rate: 570 GPM (2170 m³/h)
Rhella 4-in-1 Hydraulic Separators are made from high-grade 304 stainless steel for superior corrosion resistance and durability. Designed to provide efficient separation of dirt, air and ferrous particles while maintaining hydraulic separation between primary and secondary circuits. Stainless steel Pall ring coalescing media promotes the aggregation of air and micro-bubbles, that are automatically discharged through the automatic air vent. Suspended dirt and debris settle at the bottom for removal through the service drain, while the integrated removable magnetic rod enhances the trapping of ferrous contaminants.
5 years manufacturer warranty
- 4 x DN150 ANSI B16.5 Class 150 Flanges
- Internal stainless steel Pall ring coalescing media
- M50 grade 12,000 gauss Neodymium dirt magnet
- 2″ GM Air vent
- 1″ FNPT drain
- ¾” FNPT makeup water connection

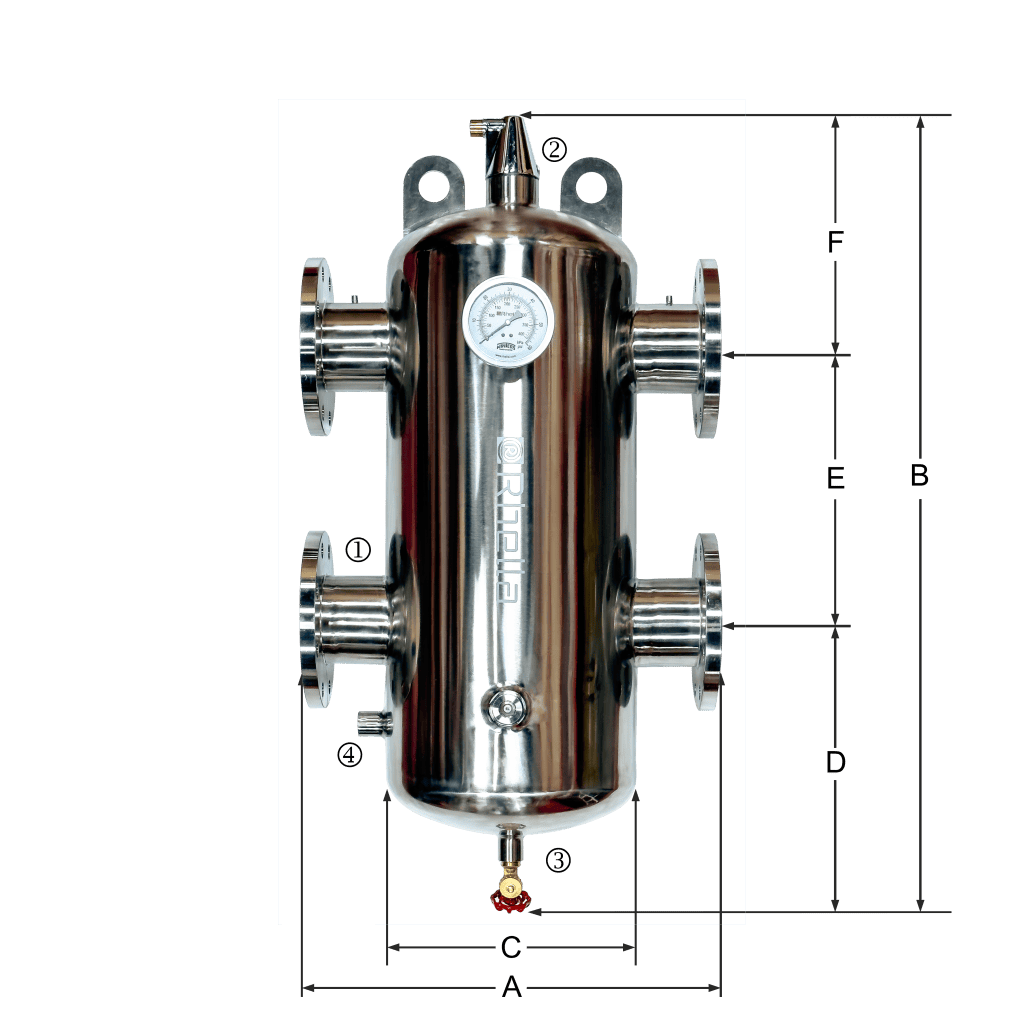

| Model | A | B | C | D | E | F | Fluids |
| LLH600P | 760 mm | 1475 mm | 460 mm | 550 mm | 500 mm | 425 mm | 50% ≥ Water Glycol Mix |
| Model | 1 | 2 | 3 | 4 | Operation temperature range | Max. Operational Pressure | Flow Rate | Weight | Shipping Weight |
| LLH600P | DN150 ANSI B16.5 Class 150 | 2" FG | 1" MNPT | 3/4" FNPT | 0-99°C/32-210°F | 10 bar/150 PSI | 570 GPM (2160 m³/h) | 217 lbs (98 kg) | 260 lbs (118 kg) |
