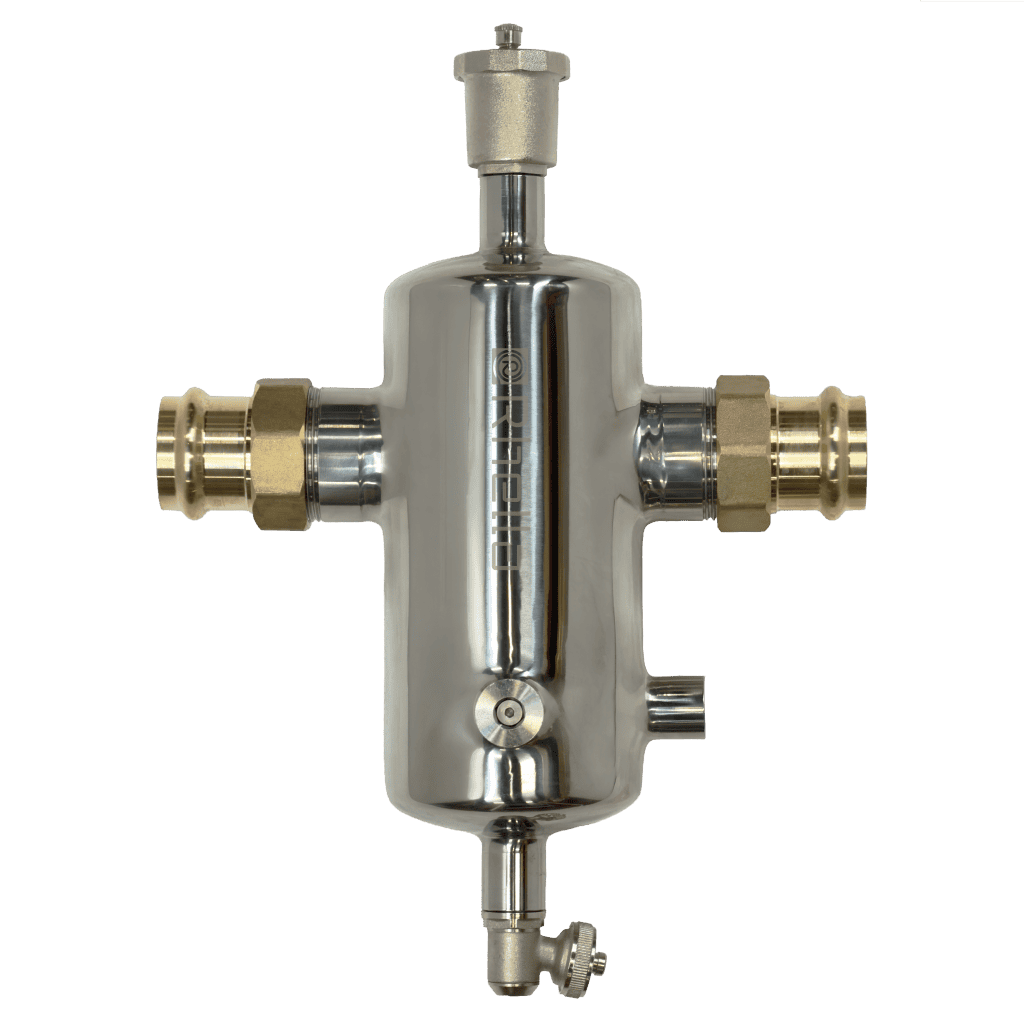

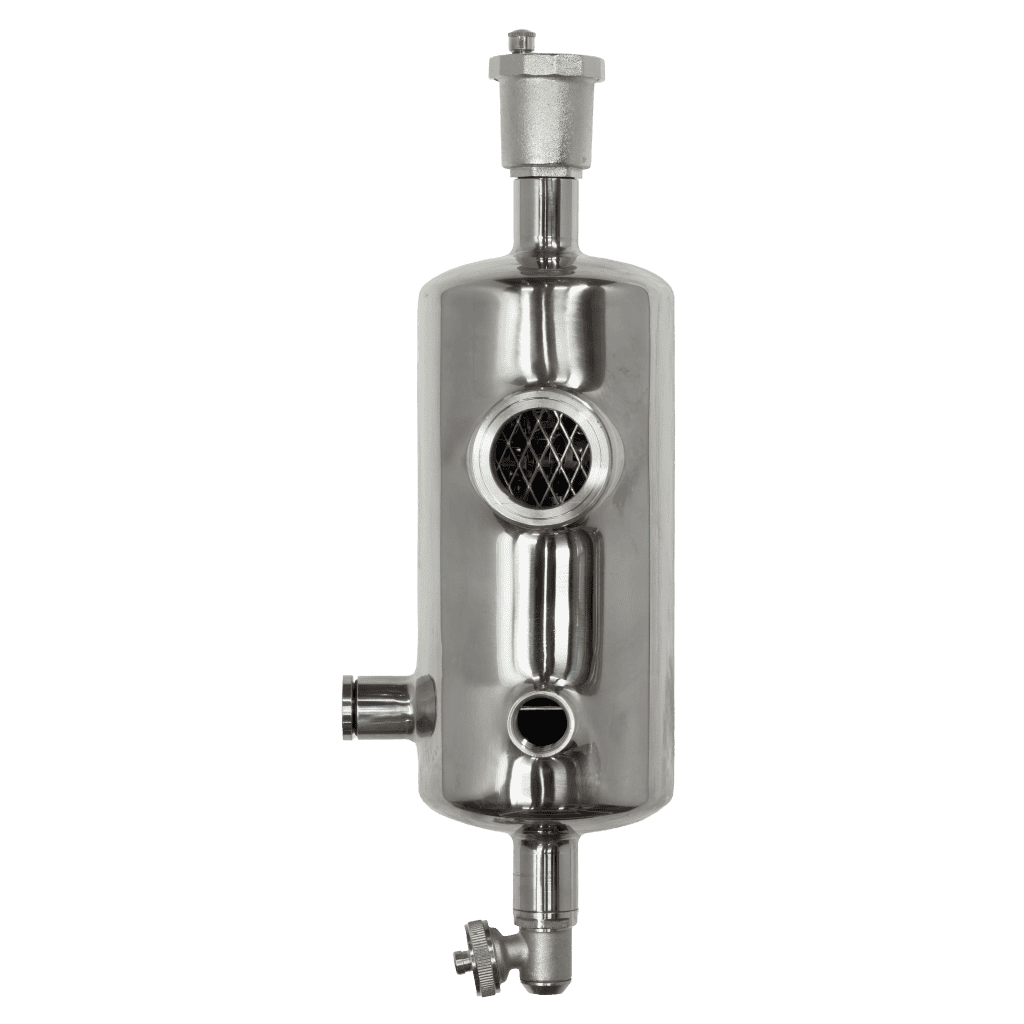

AIR Separator with a dirt magnet and 1-3/4″ G x 1-1/2″ Union Connections
Product Number: AIR150
Flow Rate: 22 GPM (5 m3/h)
Rhella 3-in-1 Air Separators are made from high-grade 304 stainless steel for superior corrosion resistance and durability. Designed to provide efficient separation of dirt, air and ferrous particles separation. 304 Stainless steel Pall rings promote the aggregation of air and micro-bubbles, that are automatically discharged through the automatic air vent. Suspended dirt and debris settle at the bottom for removal through the service drain, while the integrated removable magnetic rod enhances the trapping of ferrous contaminants.
5 years manufacturer warranty
- 1-3/4″ G x 1-1/2″ Press, Sweat or FNPT main connections
- 1/2″ GM Air vent
- 1/2″ GM Drain
- Stainless steel Pall ring coalescing media
- M50 grade 12,000 gauss Neodymium dirt magnet
- 1/2 FNPT Makeup water connection

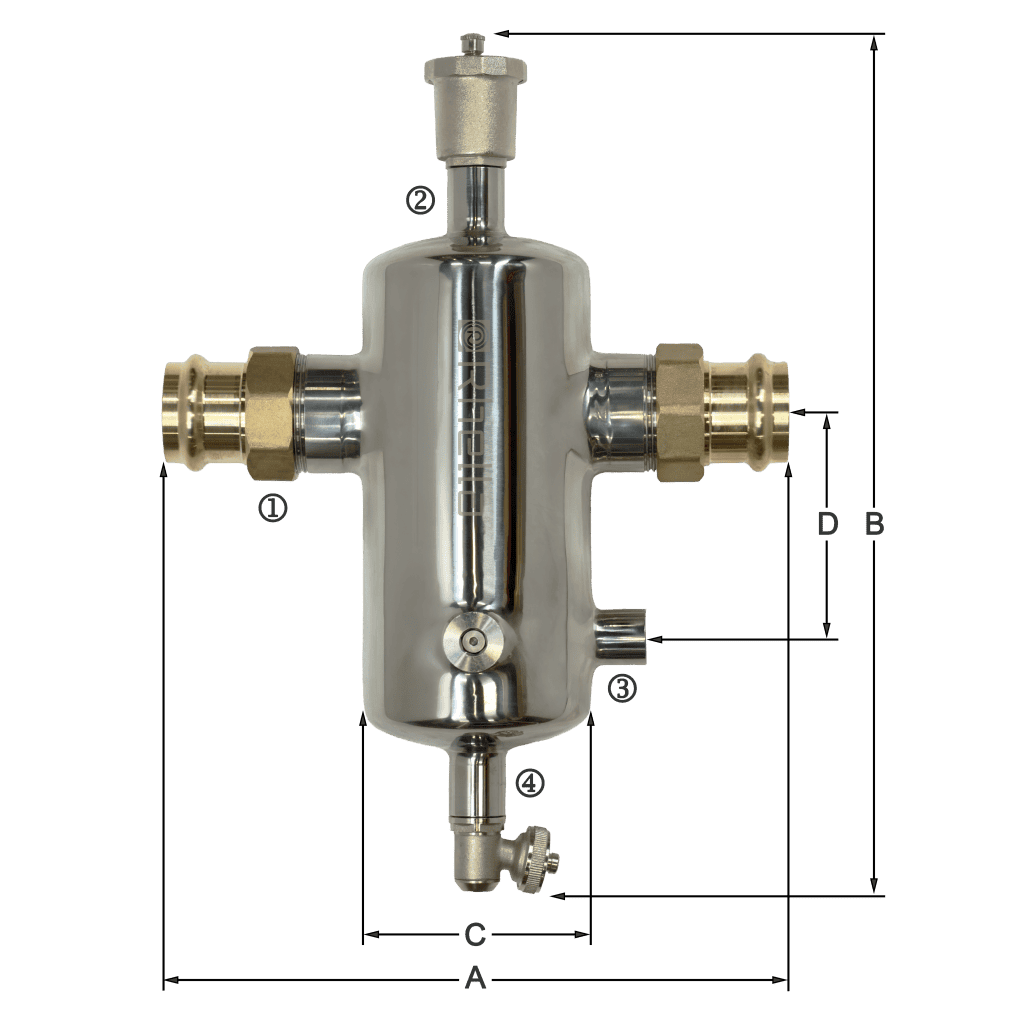

| Model | A | B | C | D | 1 | 2 | 3 | 4 | Flow Rate | Weight |
| AIR150 | 275 | 390 | 90 | 100 | 1/2" GF | 1/2" GF | 1/2" FNPT | 1/2" GF | 22 GPM - 5 m3 /h | 7.2 lbs 3.3 kg |
