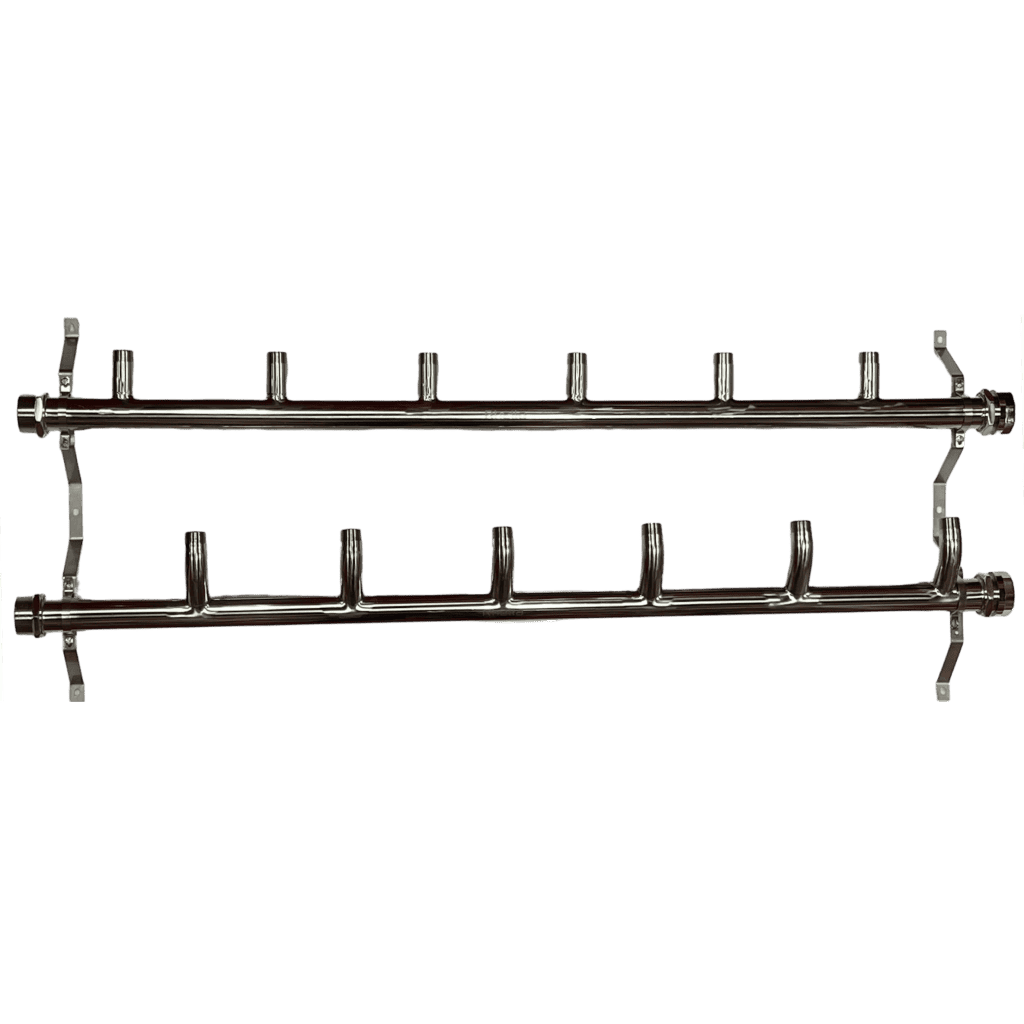

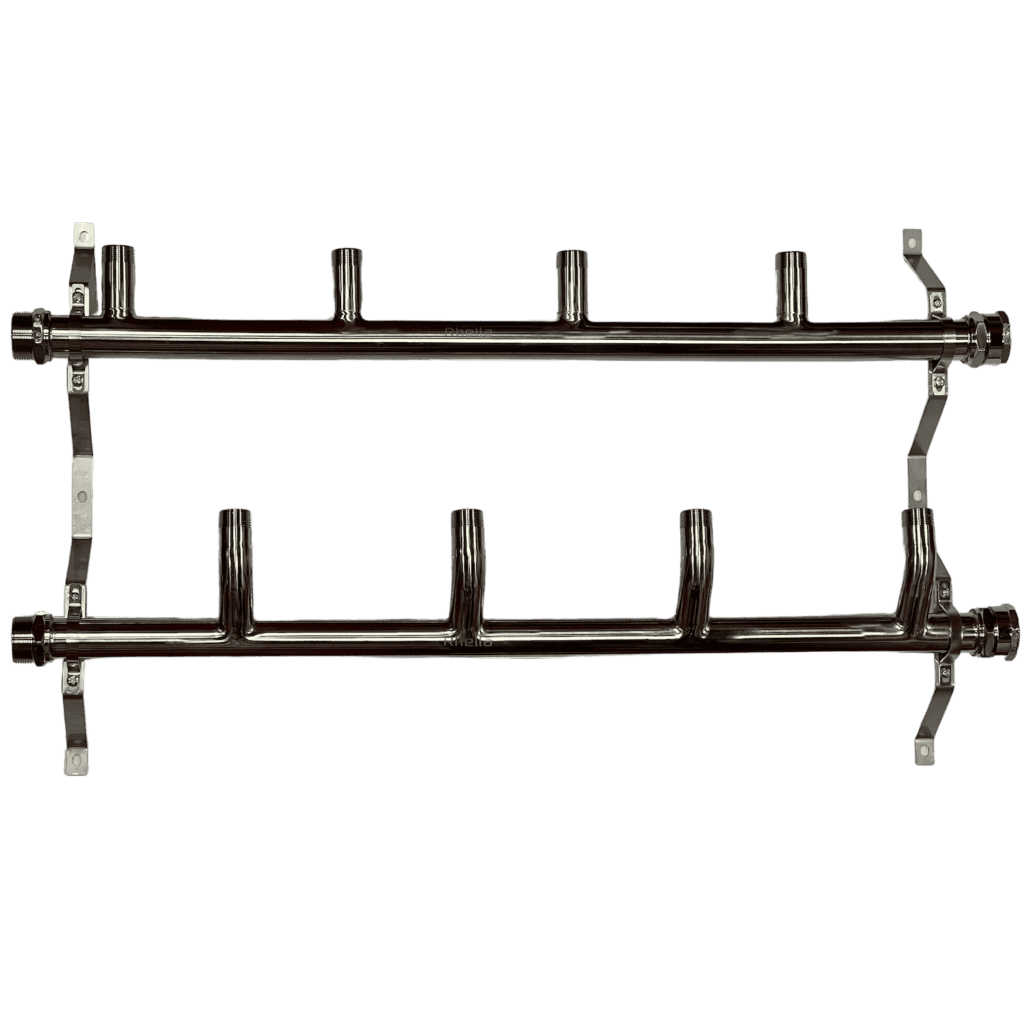

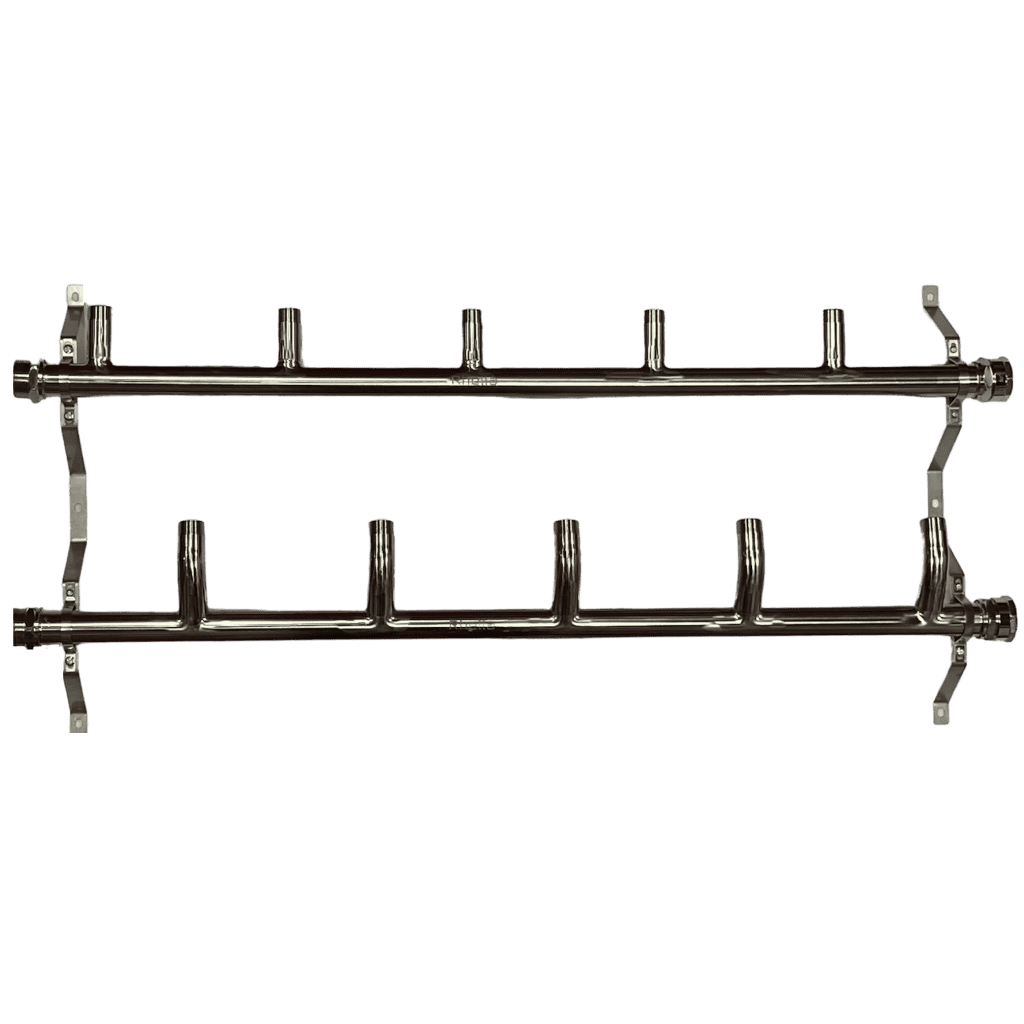

2″ Stainless Steel Hydraulic Headers

Connections: Trunks 2″ G, Branches 1″ MNPT
Diameter: Trunks ~2″ (50.8 mm), Branches 1″
Size: From 4 to 7  Vertical + 1 x Optional Horizontal Branches
Material: 302 Stainless Steel
Recommended Flow: < 21 GPM
Maximum Flow: 42 GPM
Maximum Operating Pressure: 145 Psi
Maximum Operating Temperature: 194°F
Included are: Header Pair, BSP End Caps, Mounting Brackets
Optional: Horizontal Branch Adapter
Recommended: HSU200 Hydraulic Separator 2″ With Union Connections

5 years manufacturer warranty

SKUBranch CountTotal LengthWeight
H2001054+141-3/8" (1,050mm)
H2001065+150-3/8" (1,279mm)
H2001076+159-3/8" (1,507mm)
H2001087+168-3/8" (1,736mm)
