LLH125 Hydraulic Separator

Home PageLLH125 Hydraulic Separator

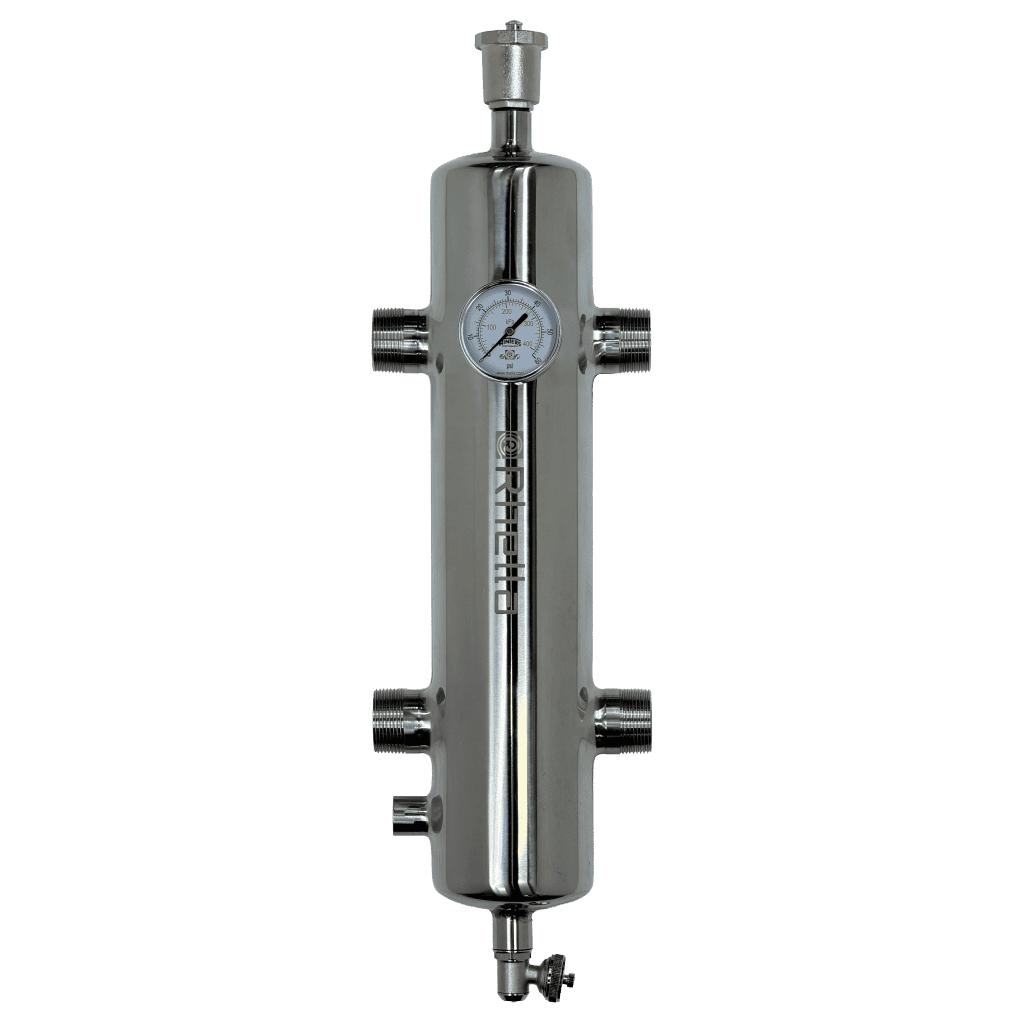

LLH125 Stainless Steel Hydraulic Separator with 1-¼” NPT Connections

Product Number: LLH125
Flow Rate: 18 GPM (4 m3/h)
  • 1-¼″ MIP primary loop connections
  • 1-¼″ MIP secondary loop connections
  • 1/2″ Air vent on top
  • 1/2″ FIP drain on the bottom
  • 1/2″ FIP on side for makeup water

Hydraulic Separators separate the primary and secondary loops, reduce the speed of flow allowing air bubbles to float up and dirt  to settle to the bottom where it can be drained.

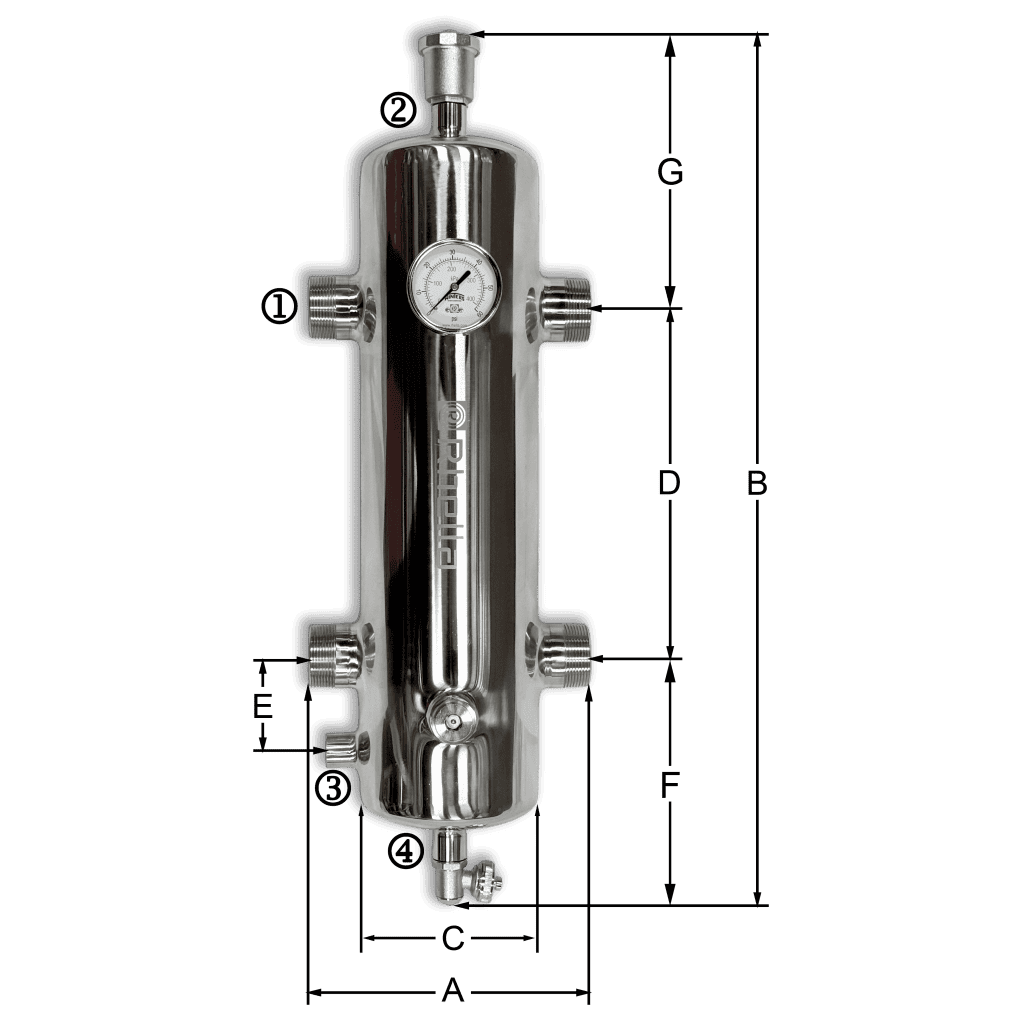

ModelABCDEFFlow RateShipping Weight
LLH12521-½"4"1-¼" MNPT½" FNPT½" FNPT½" FNPT18 GPM - 4 m3 /h10 lbs
