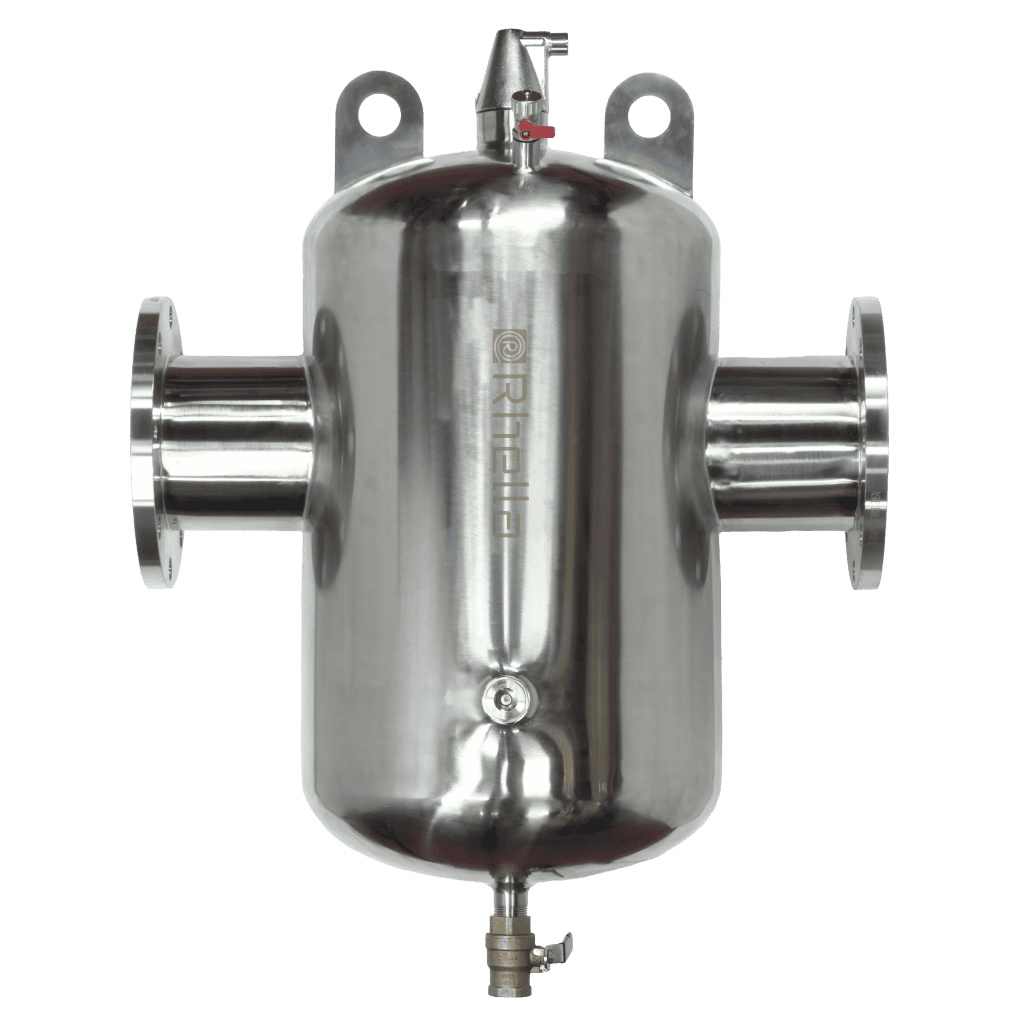

AIR600P Air Separator With Dirt Magnet

Rhella 3-in-1 Air & Dirt Separators are engineered to protect hydronic heating and cooling systems from the harmful effects of entrained air, suspended debris, and ferrous
contaminant. Constructed from high-grade 304 stainless steel, the air separator provides excellent corrosion resistance, durability, and long-term reliability in both heating and chilled-water applications.

Benefits:

• Improved System Efficiency: Removing entrained air, suspended debris, and ferrous contaminants helps maintain clean heat-transfer surfaces and hydraulic passages. This supports efficient operation of heat exchangers, boilers, radiators, and other hydronic system components. The removal of contaminants also helps reduce abrasive wear and air-related operating issues affecting circulator pumps, impellers, and mechanical seals.
• Corrosion Control: Removing oxygen-rich air and ferrous corrosion products from the circulating fluid helps reduce conditions that contribute to oxidation and corrosion within the hydronic system.
• Simpler Maintenance: The integrated automatic air vent, magnetic separator, collection chamber, and service drain simplify routine system maintenance and reduce the need for manual air purging and system cleaning
• Integrated Fill Port: A dedicated side connection serves as a convenient port for the expansion tank and system fill. This integrated design eliminates the need to source and install a separate fill tee elsewhere in the piping network, simplifying installation and reducing potential leak points.

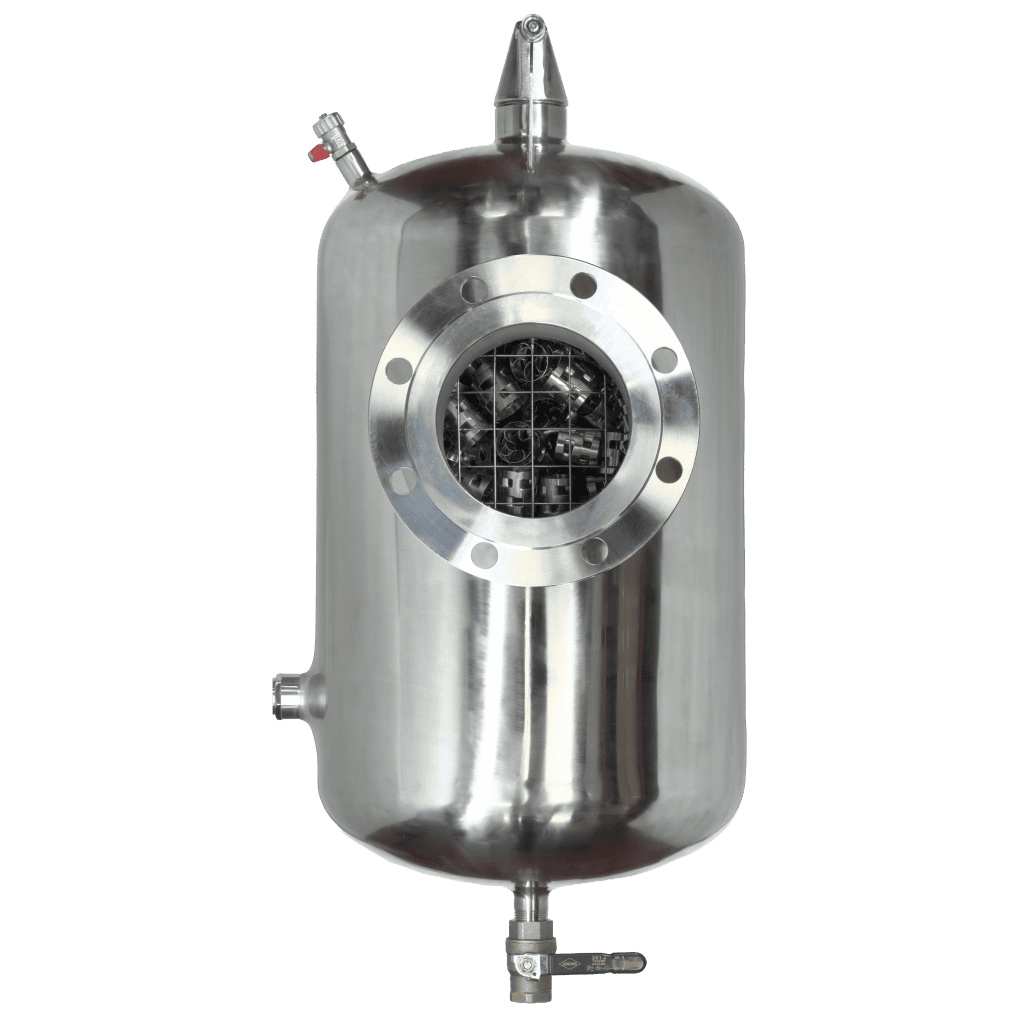

• Advanced Air Elimination: Internal 304 Stainless Steel Pall Rings act as a high-efficiency coalescing matrix, aggregating micro-bubbles into larger ones. These are automatically discharged through an automatic air vent.Dual-Stage Debris Removal:
• Dirt Filtration: The controlled flow velocity allows suspended dirt and non-magnetic particles to settle at the bottom of the unit for easy removal via the service drain.
• Ferrous Contamination: An integrated, removable M50 grade Neodymium magnetic rod captures ferrous particles, preventing abrasive wear on pumps and valves.
• Low Maintenance Design: The integrated automatic air vent, magnetic separator, collection chamber, and service drain simplify routine system maintenance and reduce the need for manual air purging and system cleaning

Technical Specifications:

• 304 stainless steel body and Pall rings
• Connections: 4 x ANSI B16.5 Class 150 Flanges
• Magnet: M50 grade Neodymium rod, 12,000 gauss, temperature rated to 90°C
• Maximum Operational Pressure: 150 PSI
• Maximum Operation temperature: 210°F
• • Fluids: water, max. 50% glycolIncluded:

1 x Air separator
1 x Purge valve
1 x TACO 4900 Air Vent
1 x Dirt magnet
1 x Drain valve
