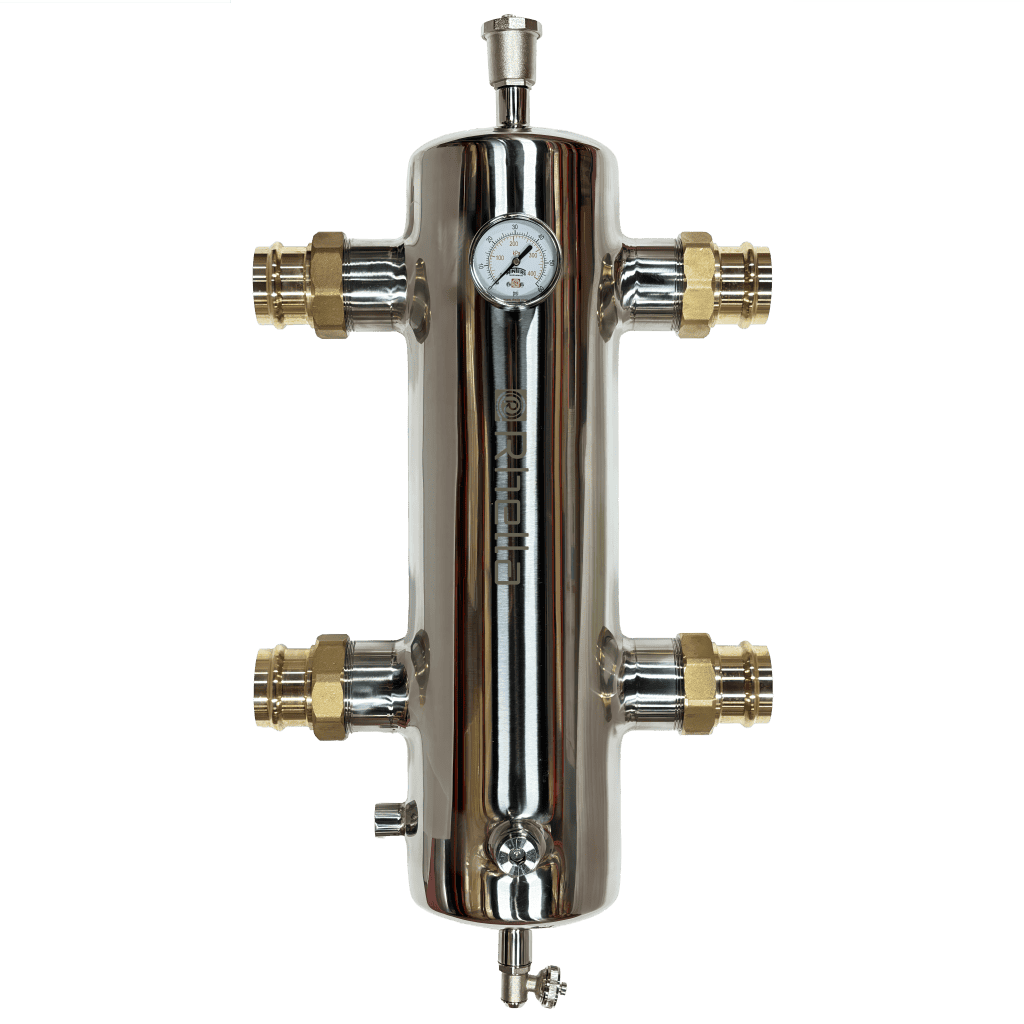

LLH200PU Hydraulic Separator

LLH200PU Hydraulic Separator with Pall rings, a dirt magnet and 2-3/8″ G x 2″ Union Connections

Product Number: LLH200PU
Flow Rate: 37 GPM (8.4 m3/h)

Rhella 4-in-1 Hydraulic Separators are made from high-grade 304 stainless steel for superior corrosion resistance and durability. Designed to provide efficient separation of dirt, air and ferrous particles while maintaining hydraulic separation between primary and secondary circuits. Stainless steel Pall ring coalescing media promotes the aggregation of air and micro-bubbles, that are automatically discharged through the automatic air vent. Suspended dirt and debris settle at the bottom for removal through the service drain, while the integrated removable magnetic rod enhances the trapping of ferrous contaminants.

5 years manufacturer warranty

• 2-3/8″ G x 2″ Press, Sweat or FNPT primary loop connections
• 2-3/8″ G x 2″ Press, Sweat or FNPT secondary loop connections
• 1/2″ GM Air vent
• 1/2″ GM Drain
• Internal stainless steel Pall ring coalescing media
• M50 grade 12,000 gauss Neodymium dirt magnet
• 1/2″ FNPT makeup water connection
