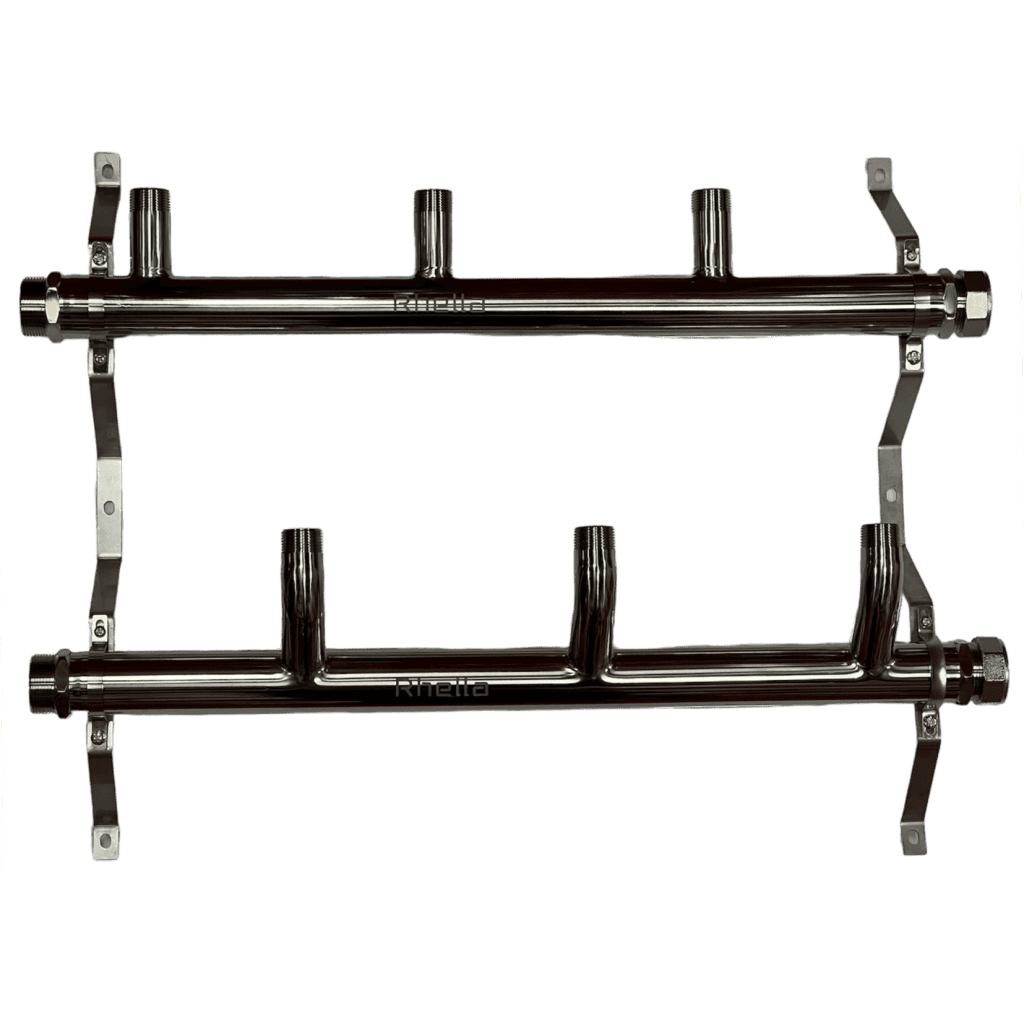

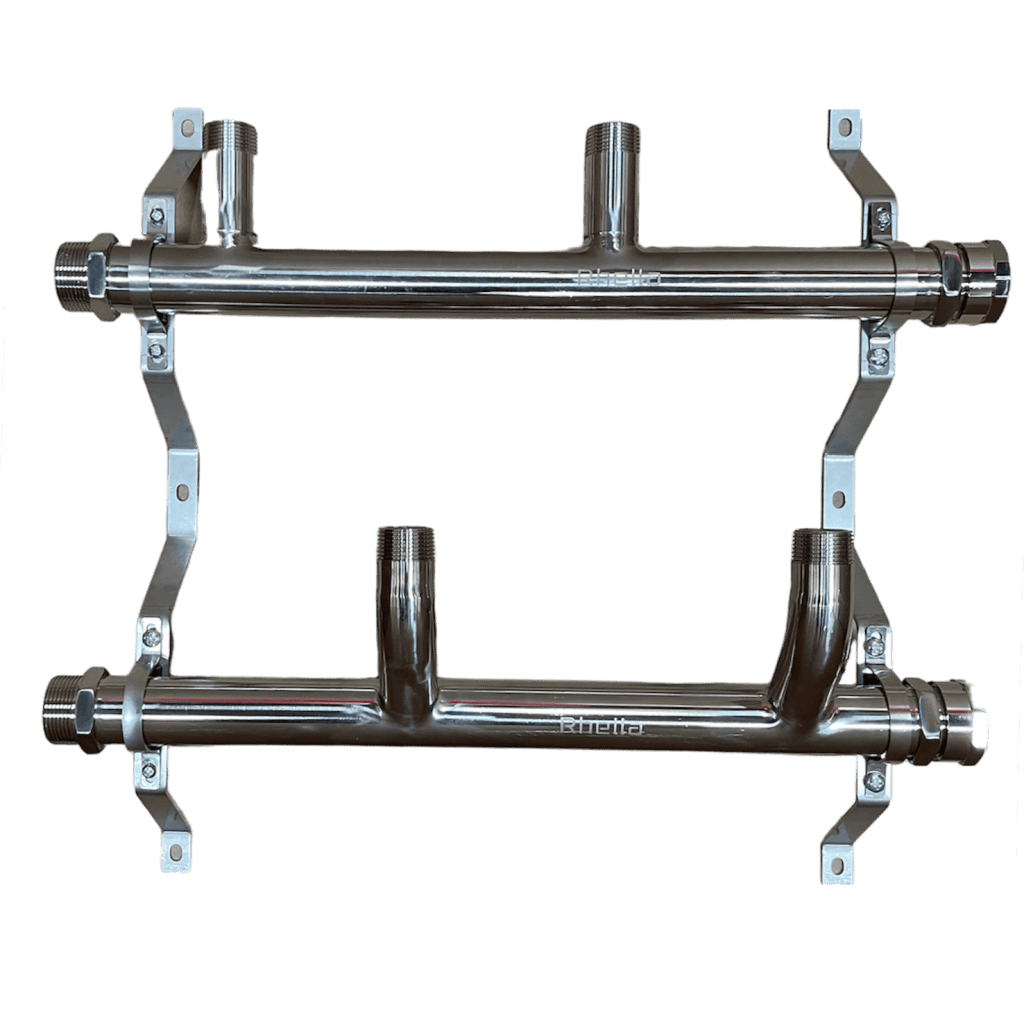

1-1/4″ Stainless Steel Hydronic Headers
Connections: Trunks 1-1/4″ G, Branches 1″ MNPT
Diameter: Trunks ~1-1/2″ (42 mm), Branches 1″
Sizes: From 2 to 4 x Vertical + 1 x Optional Horizontal Branches
Material: 304 Stainless Steel
Recommended Trunk Flow: < 13 GPM @ 2 foot /sec
Maximum Trunk Flow: 26 GPM @ 4 foot /sec
Recommended Branch Flow: < 4.9 GPM
Maximum Operating Pressure: 145 Psi
Maximum Operating Temperature: 194°F
Included are: Header Pair, BSP End Caps, Mounting Brackets
Optional: Horizontal Branch Adapter
Recommended: HSU125 Hydraulic Separator 1-1/4″ With Union Connections
5 years manufacturer warranty
| SKU | Branch Count | Total Length | Weight |
| H125103 | 2+1 | 21-1/2" (546mm) | |
| H125104 | 3+1 | 30-1/2" (774.4mm) | |
| H125105 | 4+1 | 39-1/2" (1,003mm) |
