LLH100 Hydraulic Separator

Home PageLLH100 Hydraulic Separator

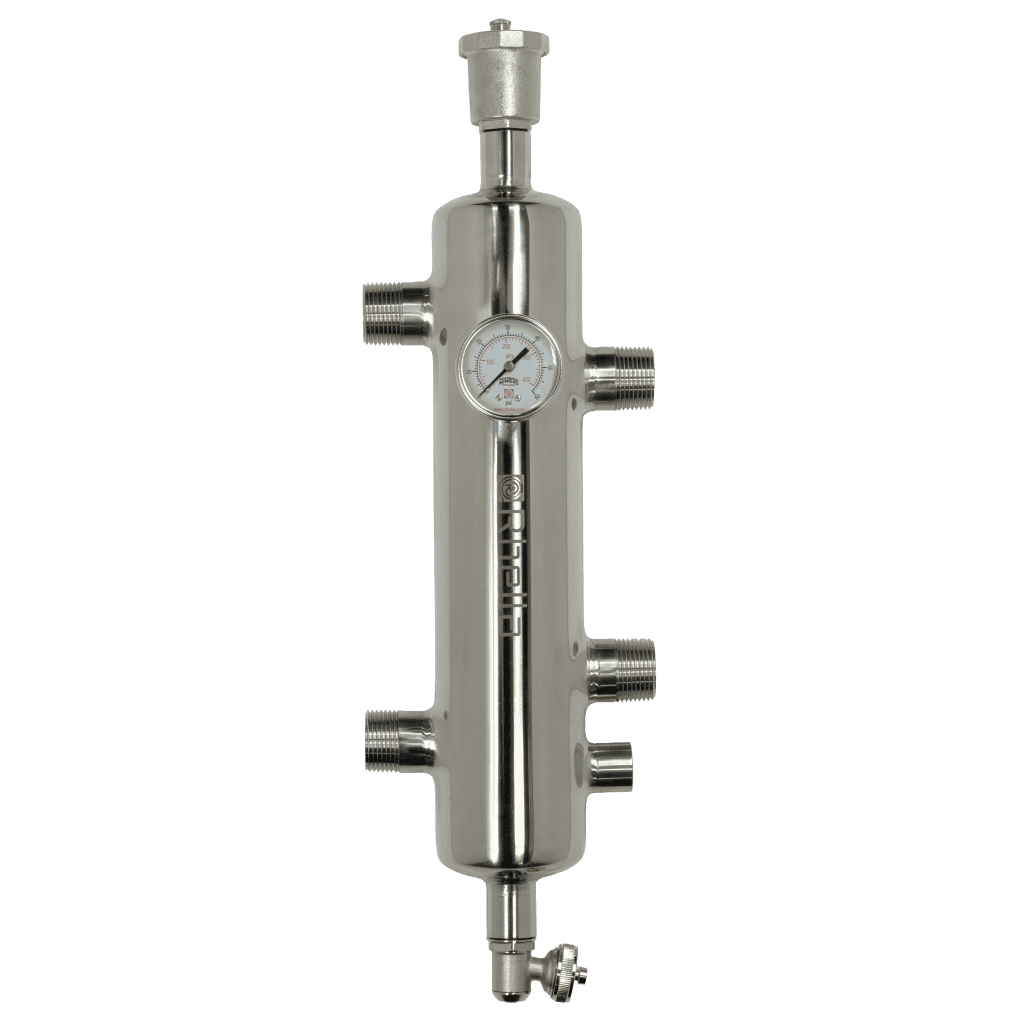

LLH100 Hydraulic Separator with 1″ NPT Connections

Product Number: LLH125
Flow Rate: 11 GPM (2.5 m3/h)
  • 1″ MIP primary loop connections
  • 1″ MIP secondary loop connections
  • 1/2″ Air vent on top
  • 1/2″ FIP drain on the bottom
  • 1/2″ FIP on side for makeup water
  • Optional Insulation jacket

Hydraulic Separators separate the primary and secondary loops, reduce the speed of flow allowing air bubbles to float up and dirt  to settle to the bottom where it can be drained.

5 years manufacturer warranty

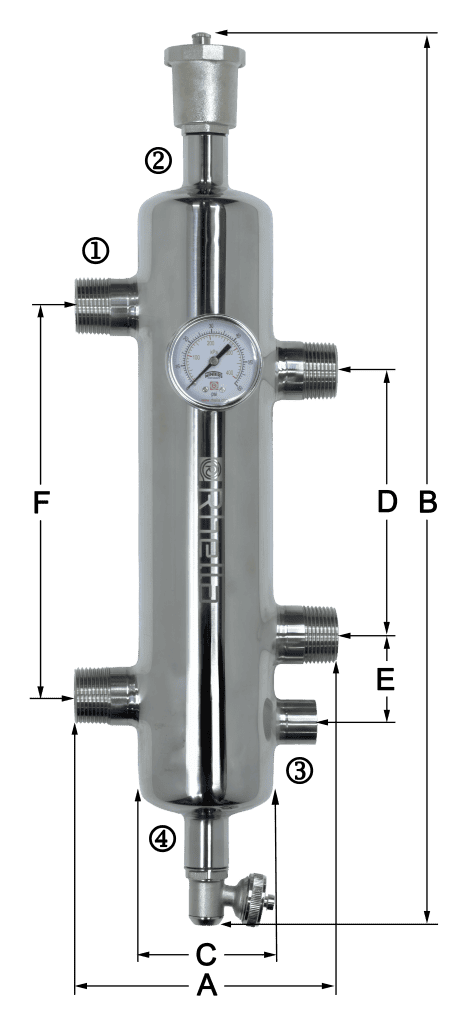

ModelABCDEFFlow RateWeight
LLH10015-¾ "3"1" MNPT½" FNPT½" FNPT½" FNPT11 GPM (2.5 m3 /h)3.5 lbs
