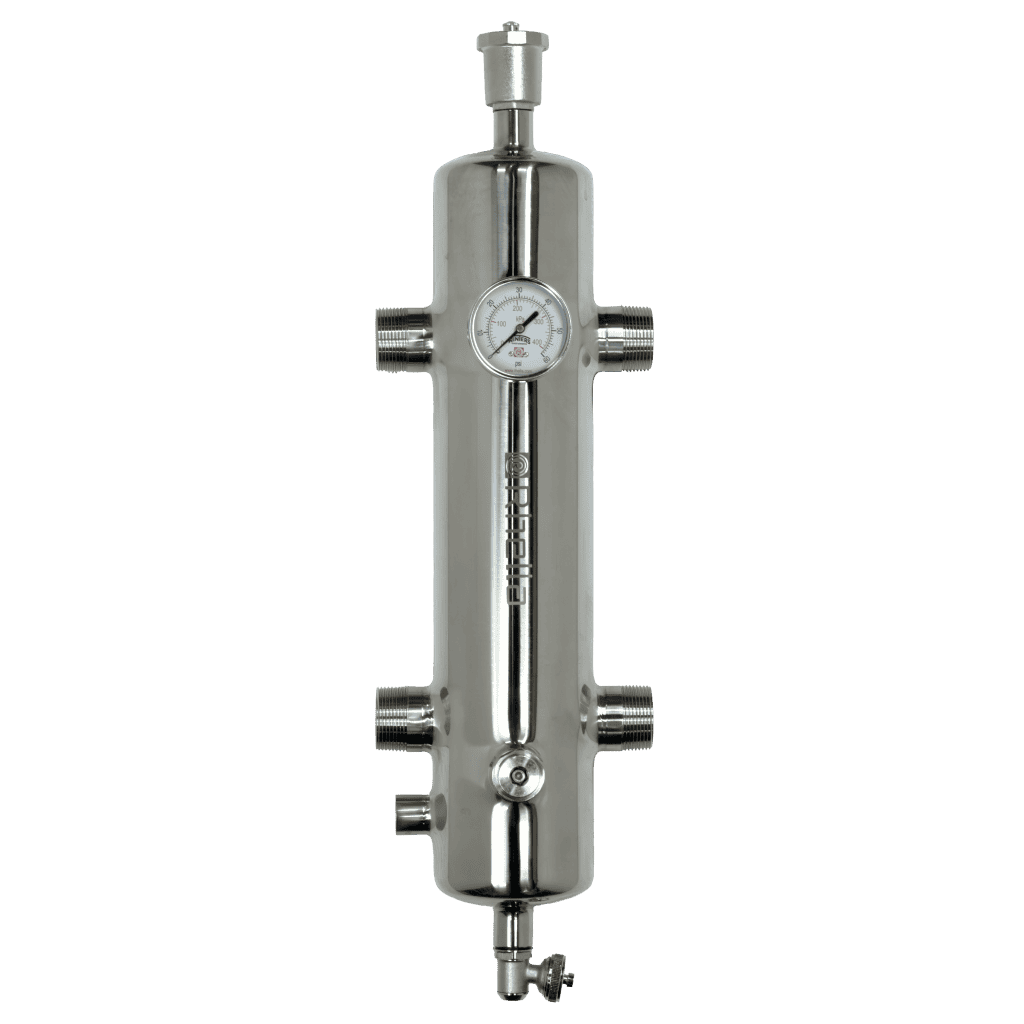

LLH125M Hydraulic Separator

LLH125M Hydraulic Separator with a dirt magnet and 1-1/4″ NPT Connections

Product Number: LLH125M
Flow Rate: 18 GPM (4 m3/h)

Rhella  Hydraulic Separators are made from high-grade 304 stainless steel for superior corrosion resistance and durability. Designed to provide efficient separation of dirt and air while providing hydraulic separation between primary and secondary circuits. Coalescing media promotes the aggregation of air and micro-bubbles, that are automatically discharged through the automatic air vent. Suspended dirt and debris settle at the bottom for removal through the service drain, while the integrated removable magnetic rod enhances the trapping of ferrous contaminants.

5 years manufacturer warranty

• 1-1/4″ MNPT primary loop connections
• 1-1/4″ MNPT secondary loop connections
• 1/2″ GM Air vent
• 1/2″ GM drain
• Internal stainless steel baffle coalescing media
• M50 grade 12,000 gauss Neodymium dirt magnet
• 1/2″ FNPT makeup water connection

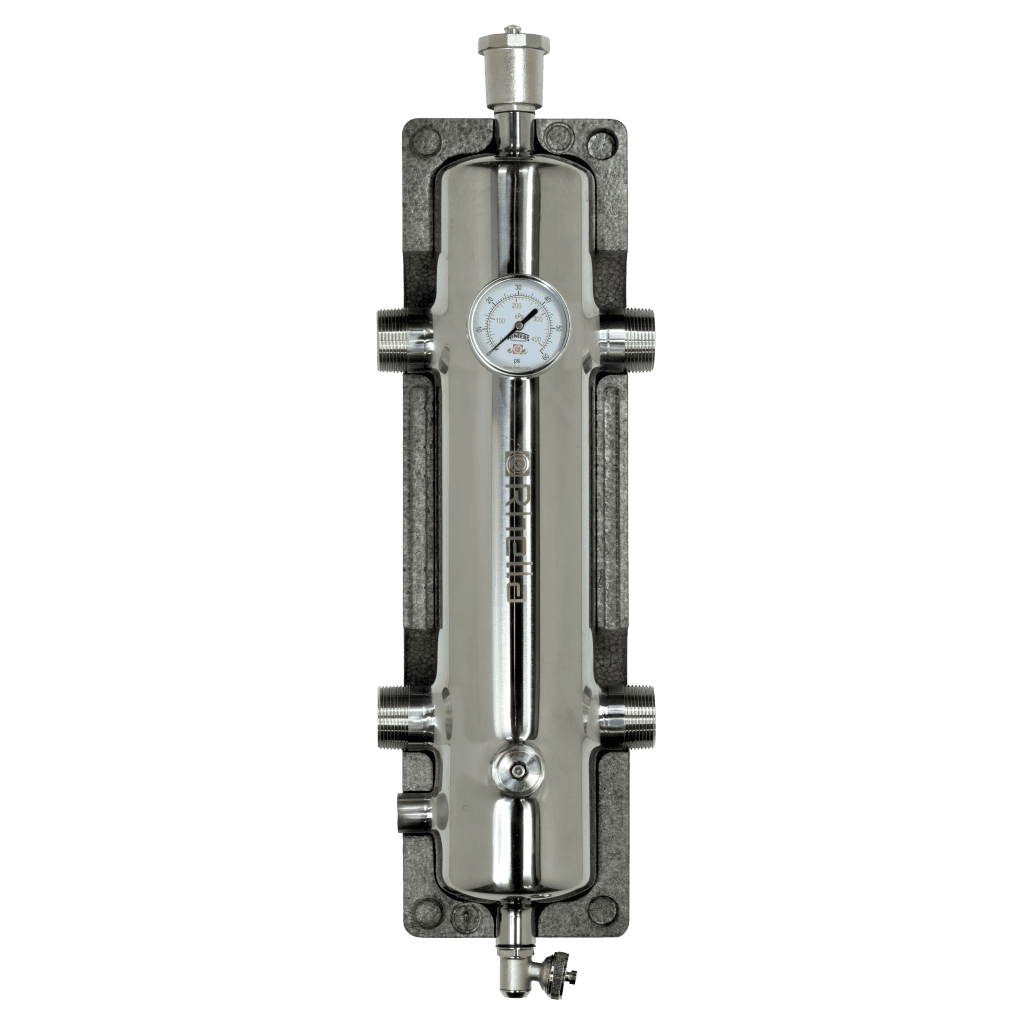

• Insulation jacket
