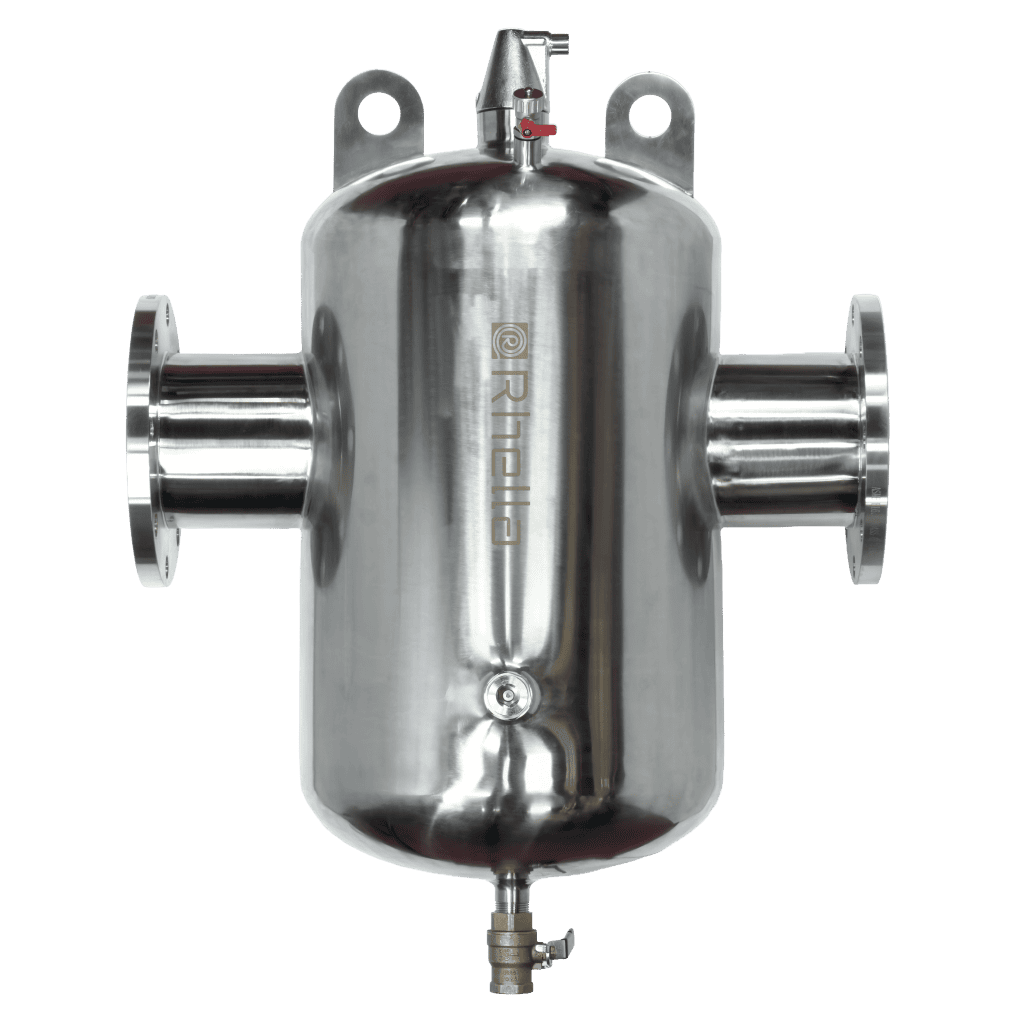

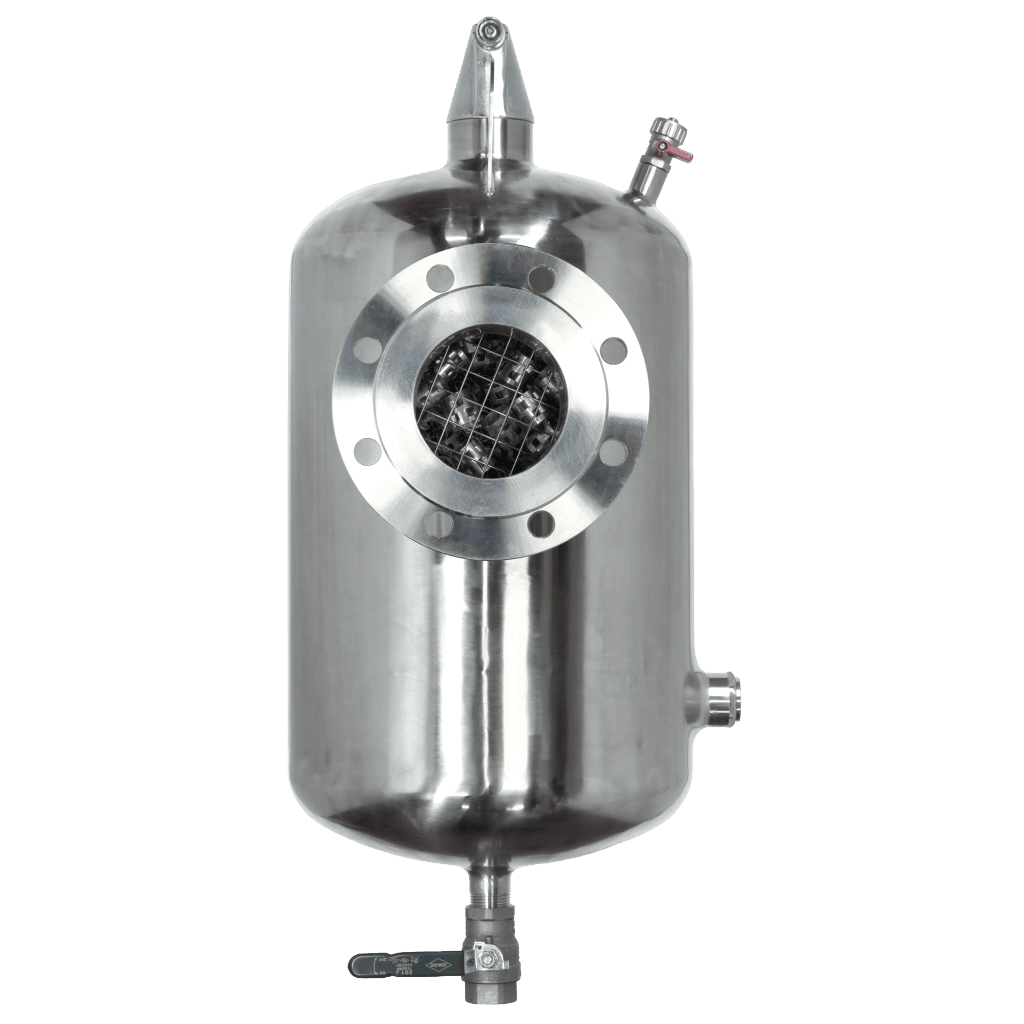

AIR400 Air Separator With Dirt Magnet

AIR400 Air Separator with a dirt magnet and ANSI 150 Flanges

Product Number: AIR400
Max Flow: 255 GPM

Rhella 3-in-1 Air Separators are made from high-grade 304 stainless steel for superior corrosion resistance and durability. Designed to provide efficient separation of dirt, air and ferrous particles separation. 304 Stainless steel Pall rings promote the aggregation of air and micro-bubbles, that are automatically discharged through the automatic air vent. Suspended dirt and debris settle at the bottom for removal through the service drain, while the integrated removable magnetic rod enhances the trapping of ferrous contaminants.

5 years manufacturer warranty

• 4″ ANSI 150 lbs 8 bolt flanges
• 2″ GF Air vent connection
• Taco 4900 series high capacity air vent
• 1″ MNPT Drain
• Internal stainless steel Pall ring coalescing media
• M50 grade 12,000 gauss Neodymium dirt magnet
• 1/2″ FNPT flush/purge connection
