Ground Recessed Manifold Vaults for XFM Series Manifolds

Ground Recessed Manifold Vaults for XFM Series Manifolds

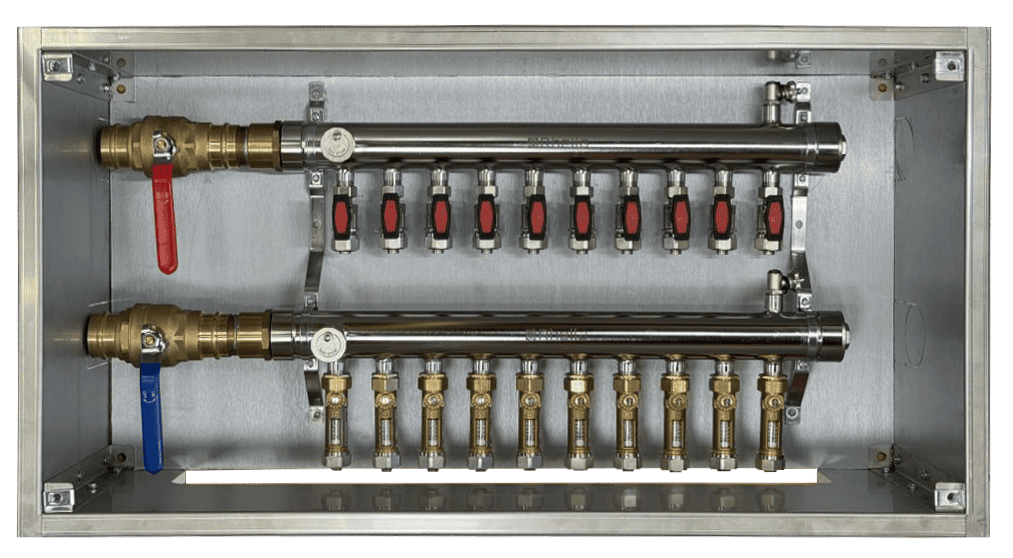

Rhella manifold vaults provide a clean, safe, and professional below-grade enclosure for XFM Series manifolds in snowmelt and radiant heating systems. Constructed from durable 201 stainless steel, these vaults offer excellent corrosion resistance and long-term reliability when exposed to the elements. The design ensures that the manifold can be accessed for maintenance while remaining fully protected underground.

Features & Benefits:

• Optimized for XFM Manifolds: Specifi cally designed to house Rhella XFM manifolds with precise internal dimensions, allowing for easy installation and future servicing without unnecessary bulk.
• Heavy-Duty 201 Stainless Steel Construction: The 4mm top lid and 2mm side panels provide robust protection against corrosion and physical impact, ensuring a long service life . The lid features a slip-resistant checkered surface for safety and an overlap cover design to keep dirt and debris out.

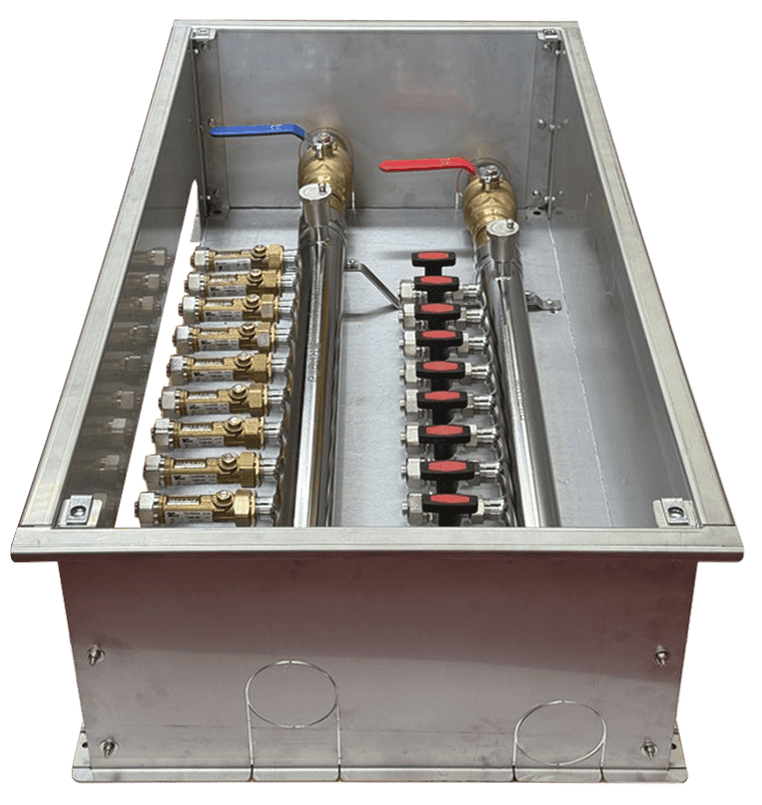

• Flexible Installation Options: Perforated knock-out side connections allow for easy tubing penetration, accommodating pre-insulated PEX tubing. This design offers flexibility to install supply and return lines before or after the manifold is placed.
• Durable & Accessible Design: The high-load-bearing lid is reinforced for rigidity and is designed to withstand normal foot traffi c and incidental contact with lawn care equipment. Pre-drilled anchor holes simplify securing the vault to a concrete slab or patio stones.

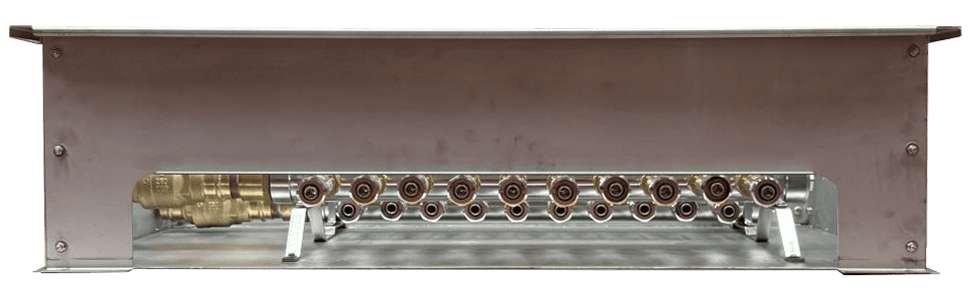

• Safety & Convenience Features: Folded-over edges on the top and front openings protect hands and PEX tubing from abrasion or cutting damage during installation and maintenance. The 12-inch depth is optimized for the ideal installation height of Rhella XFM manifolds.
• Quick Installation: The vault is delivered pre-assembled to expedite on-site installation.

Technical Specifi cations:

• Material: 201 Stainless Steel
• Side Panels: 2mm thickness

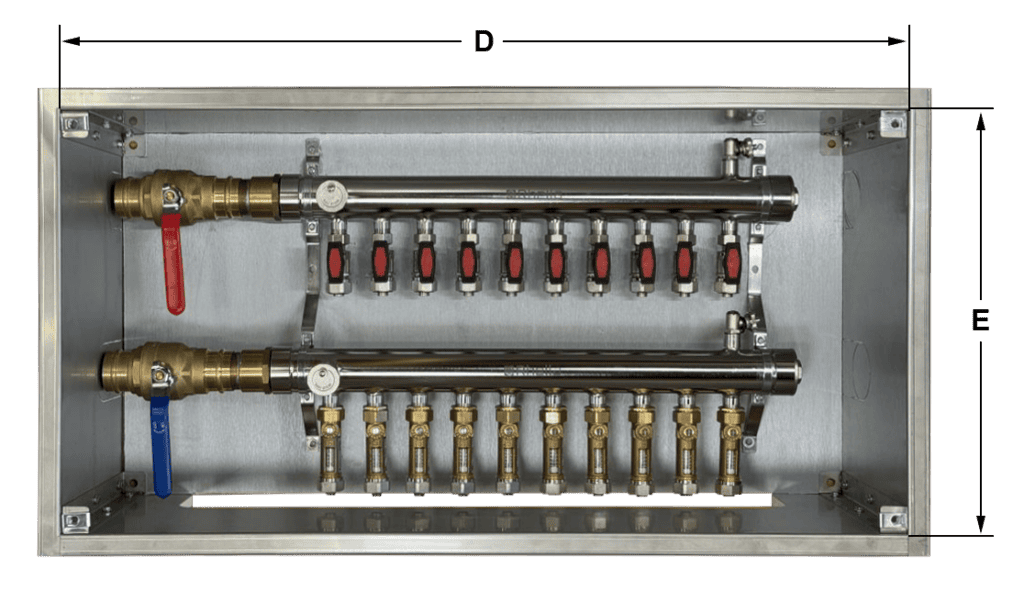

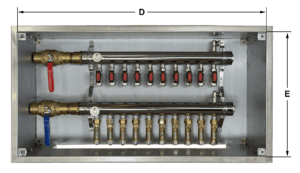

• Depth: 12 inches (optimized for XFM manifolds)
• Operating Environment: Ground, (below grade)

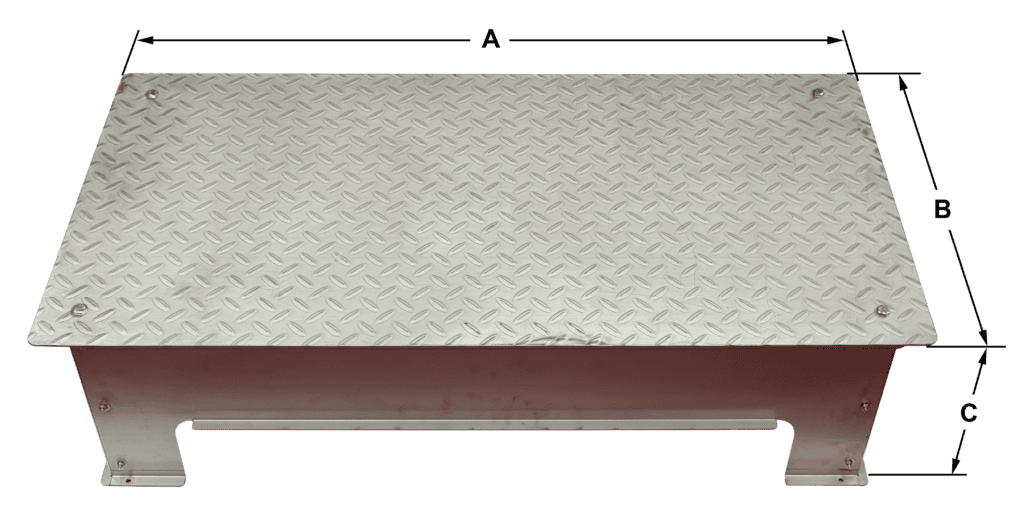

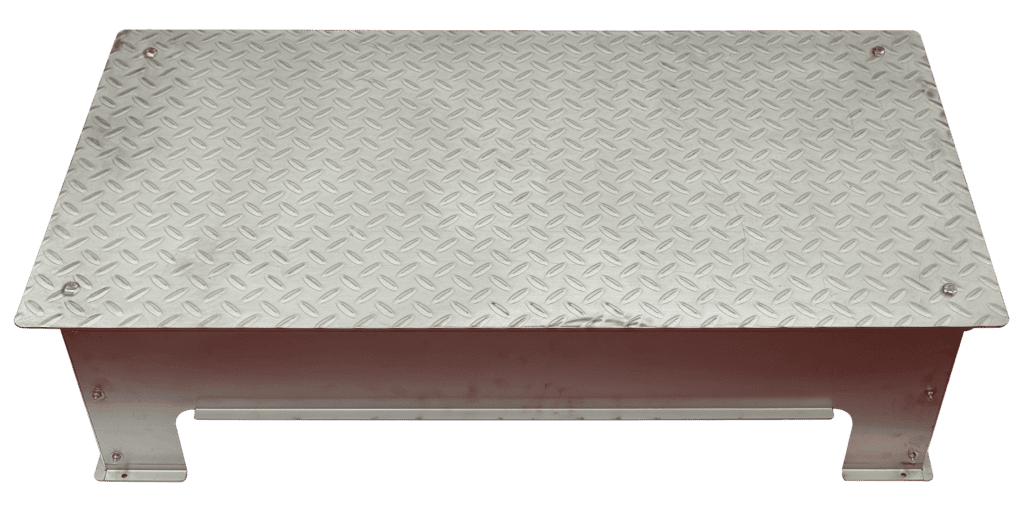

• Top Lid: 4mm thickness, slip-resistant texture, overlap design
• Load Rating: Standard foot traffi c and riding lawn mowers
• Features: Perforated knock-outs, pre-drilled anchor holes, folded edges
