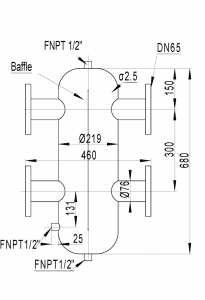

Rhella 2-½” 304 Stainless Steel Hydraulic Separator
with DN65 ANSI B16.5 Class 150 Flanges

Product Number: LLH250
Flow Rate: 88 GPM (20 m3/h)
  • 4 X DN65 ANSI B16.5 Class 150 Flanges
  • 1/2″ Air vent on top
  • 1/2″ FIP drain on the bottom
  • 1/2″ FIP on side for makeup water

Hydraulic Separators separate the primary and secondary loops, reduce the speed of flow allowing air bubbles to float up and dirt  to settle to the bottom where it can be drained.

ModelShipping WeightFlow RateFlow SpeedMax. Operational PressureOperation temperature rangeFluids
LLH25050 lbs88 GPM (20 m³/hr)5.89 Ft/Sec10 bar/150 PSI0-100°C/132-270°FWater, Up to 50% Water/Glycol Mix
